Full Setup Guides
ZOLL AED 3
The ZOLL AED 3® is an innovative and user-friendly automated external defibrillator designed to streamline the rescue process in cardiac emergencies. Its intuitive full-color touch screen allows users to quickly access important information and configure the device without the need for external devices or software.
A standout feature is Real CPR Help®, which provides clear, vivid feedback with images, a CPR cycle timer, and a color-coded gauge for compression depth, helping users of all experience levels to perform effective CPR.
The device provides calm voice prompts, guiding users to adjust their compressions, pause for heart analysis, and deliver shocks when necessary. Versatility is another key attribute, as the ZOLL AED 3® comes with universal CPR Uni-Padz™ that cater to both adult and pediatric patients, allowing for a seamless transition between child and adult defibrillation with a simple press of the Child Button.
Additionally, the AED is equipped with Wi-Fi connectivity, offering real-time updates on its status, alerts for any self-test failures, and vital information regarding supplies like pads and batteries. This feature enhances the device’s reliability, ensuring it is always ready for emergency use, regardless of the patient’s age.

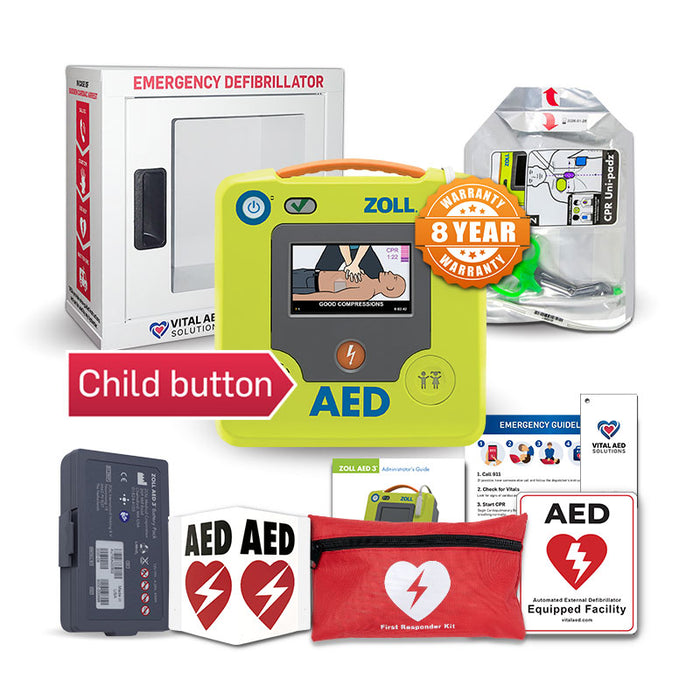

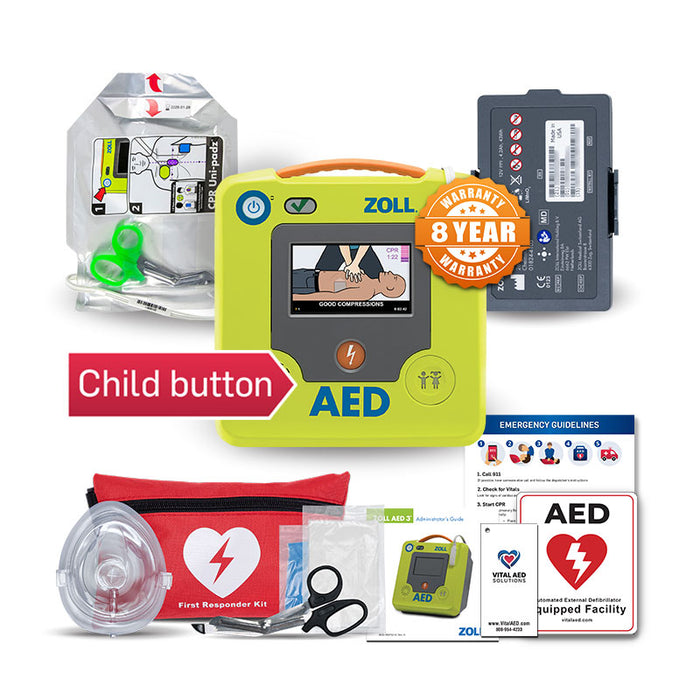

What’s Included:
- 1 New ZOLL AED 3®
- 1 Pair of CPR-Uni-padz®
- ZOLL AED 3 Battery Pack
- Instruction Manual
- Quick Start Guide
- 8 Year Warranty
FREE - Exclusively from Vital AED
- 1 FREE AED+CPR Responder Kit – Red pouch with shears, gloves, mask, towel
- 1 FREE Inspection / Maintenance Tag – Keep track of expiration dates
- 1 FREE AED Decal / Sticker
- 1 FREE Emergency Guidelines Poster
- 1 FREE Fire Blanket
- FREE All Vital AED customers will get notifications when pads and batteries reach their expiration dates
- FREE Ground Shipping on orders over $99
- 1 FREE Physician’s Prescription
- Bilingual: Yes but needs to be programmed to only 1 language
- Adult Pads: Replace every 5 years
- Pediatric Pads: Has Child Button so this AED is Pediatric Ready - Included
- Battery Life: Replace every 5 years
- Warranty: 8 years
- CPR Coaching: Real Time CPR Coaching/Feedback
- Fully Automatic Option: Yes
- Joule Output: Escalating 120J – 200J
- Aviation Option: No
- Weight: 5.5
Enhanced Real CPR Help
The ZOLL AED 3™ automated external defibrillator (AED) provides detailed CPR guidance with proprietary Real CPR Help® technology. More powerful full-colour images and a CPR cycle timer, combined with voice and text prompts, help guide responders through the rescue.
The Real CPR Help integrated, real-time CPR feedback tells and shows rescuers when they need to “Push Harder” or whether they are doing “Good Compressions,” so they know when they are administering high-quality CPR.
RapidShock Analysis
The ZOLL AED 3 with RapidShock™ analysis enables the shortest rhythm analysis for more continuous care and more life-saving CPR. RapidShock analysis allows the ZOLL AED 3 to deliver a shock, if needed, in as little as 5 seconds.
Research shows that minimising time to shock after the CPR cycle ends may improve survival. The 2015 AHA Guidelines note that shorter pauses can be associated with greater shock success and higher survival rates.
Integrated Paediatric Rescue
Paediatric rescue is made easier with ZOLL’s unique CPR Uni-padz™ electrodes and a child-mode setting. Use the same set of electrode pads for adults and children by activating child mode.
Low Total Cost of Ownership
Longer-lasting 5-year battery and electrode pads reduce AED maintenance requirements, improving readiness and lowering overall cost of ownership.
Wi-Fi Connectivity
Easily manage your suite of devices via the cloud. Once enabled, the ZOLL AED 3 will automatically report its readiness, failed self-tests, and send alerts to ensure it’s always ready.
- Automation: Semi Automatic | Fully Automatic
- Display: Full-color display
- CPR Technology: Real CPR Help with feedback and cycle timer
- ECG: N/A
- Pediatric Mode: Available via CPR Uni-Padz and Child Button
- Dual Language: N/A
- Connectivity: Wi-Fi
- Readiness Indicator: Solid green light
- Self-Test: Daily/Weekly
- Event Data: Access via Wi-Fi
- IP Rating: IP55
- Powering Process: 120J – 200J with RapidShock
- Electrode Pads: CPR Uni-Padz (5-year shelf life)
- Battery: ZOLL AED 3 Battery Pack (5-year shelf life)
- Weight: 5.5 Lbs
